GL-S10 BLE IoT Gateway | PoE Power Supply
by AFI WIRELESS
$55.90
Sold out
Version:
Added to cart.
BEFORE YOU BUY
- Enjoy FREE SHIPPING for eligible products, typically 5-8 working days.
- Products marked "Ship from China" may include TAX/VAT and longer delivery windows.
- If you are located outside of the US, visit the Global Store for international shipping options.
Bulk OrderFor wholesale pricing or order questions, contact [email protected].

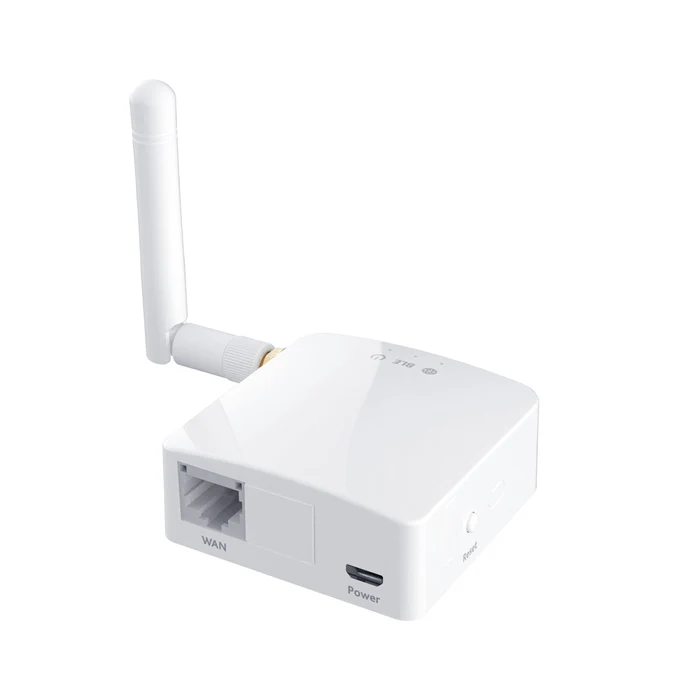

Meet GL-S10
Connecting IoT devices to the cloud
- ESP32-powered BLE to MQTT gateway for cloud telemetry pipelines
- Supports MQTT and PoE for flexible deployment and power wiring
- Built-in BLE module for beacon/edge acquisition workflows
- Low-power compact design suitable for continuous operation scenarios
- Note: this product cannot be used as a Wi-Fi access point
How GL-S10 works

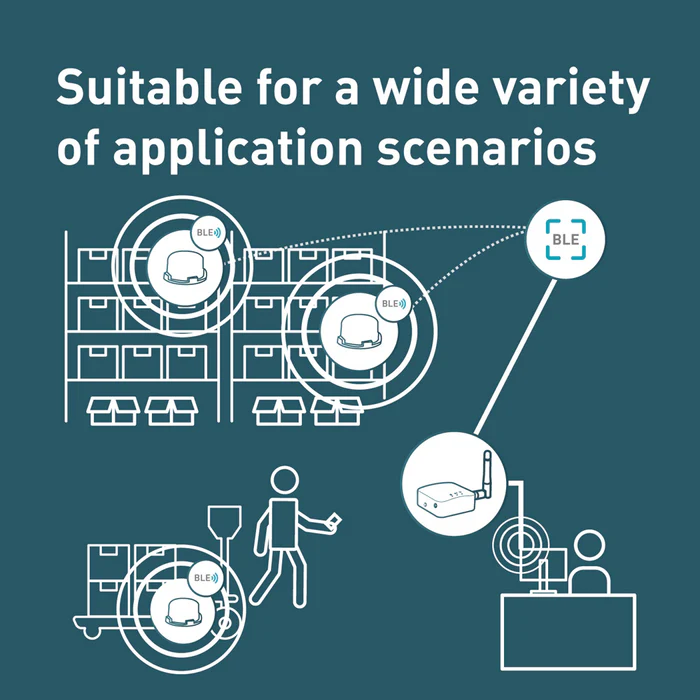

GL-S10 bridges BLE broadcast data to cloud services through MQTT, connecting beacons and sensors to standard MQTT brokers and cloud endpoints such as AWS IoT.

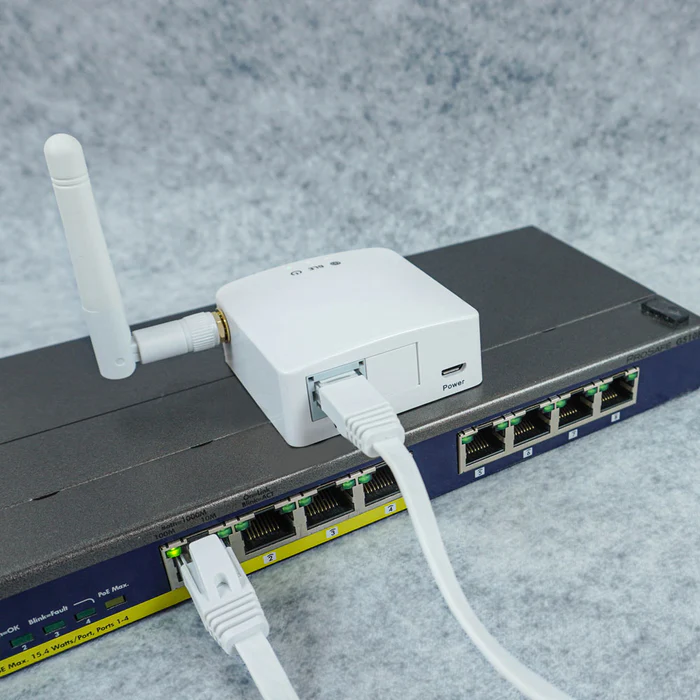

It can connect upstream by Wi-Fi station mode to a parent router, or by WAN Ethernet, then forward incoming BLE messages via built-in MQTT client logic.
ESP32-D0WD chipset
GL-S10 uses the ESP32-D0WD platform integrating 2.4GHz Wi-Fi and BLE with low-power behavior and stable RF characteristics for broad IoT deployment scenarios.
A minimalist IoT communication solution
BLE 4.2Beacon communication and real-time scanning support.
MQTTStandard client forwarding to cloud brokers.
AWS IoTSuitable for AWS IoT integration paths.
PoE + Micro USBFlexible power input options for field installs.
150Mbps Wi-Fi2.4GHz uplink class for lightweight IoT traffic.
Compact footprintLow-cost, low-power gateway form factor.
Technical specifications
| CPU | ESP32-D0WD |
|---|---|
| Memory / storage | SRAM 520KB + PSRAM 8MB / NOR Flash 4MB |
| Protocol | IEEE 802.11 b/g/n |
| Wi-Fi speed | 150Mbps (2.4GHz) |
| Antenna | SMA external antenna |
| Ethernet port | 1 × WAN |
| Ethernet speed | 10/100Mbps |
| Power input | Micro USB 5V/1A or PoE power input |
| Power consumption | <0.5W |
| Dimension / weight | 57 × 57 × 25mm / 53.6g |
| Tools & downloadables | Firmware & downloads | Tutorials | Apps |

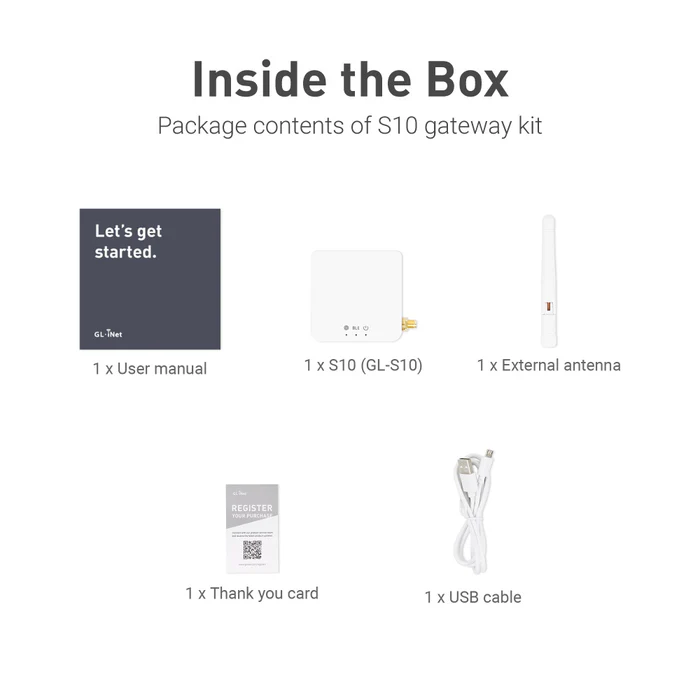

Package content
- GL-S10 Gateway
- External antenna
- USB cable
- User manual
